One digital abutment, the parts that shape tissue around it, and the lab side that mirrors it all. Scroll through the i-base to see why it carries the whole protocol.

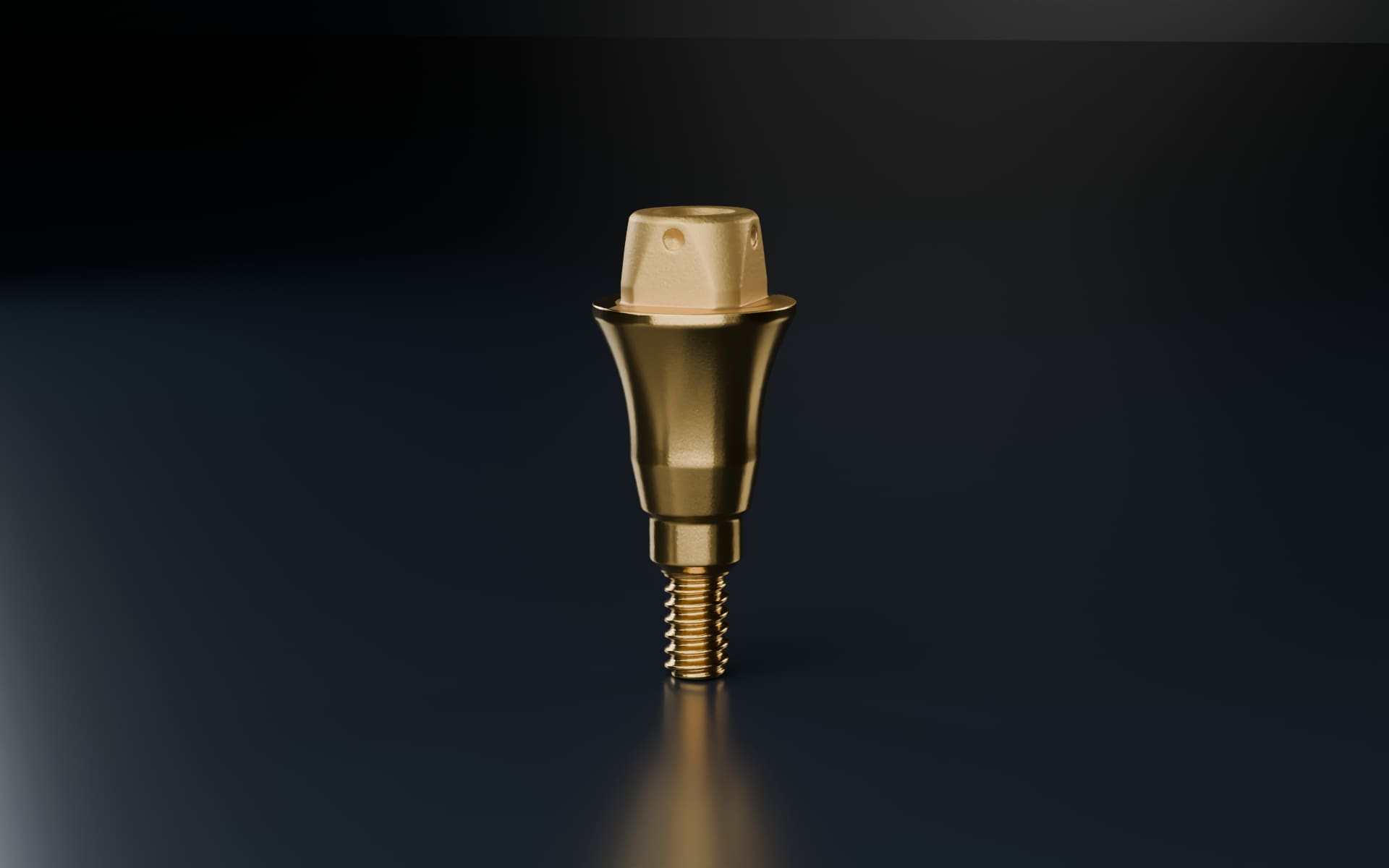

One abutment for all stages of treatment, placed once and never removed. Six design decisions make that possible.

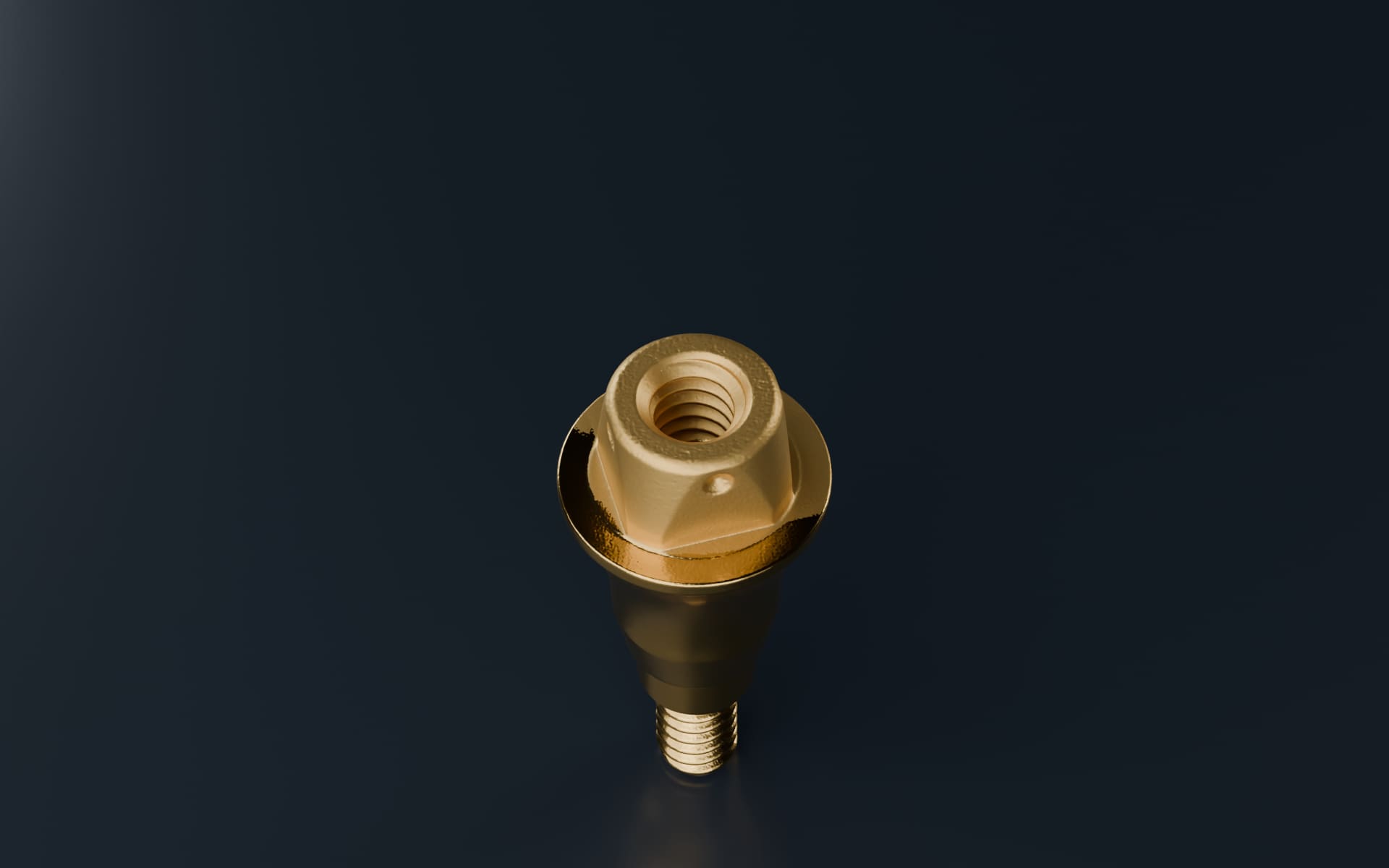

Scan marks on the quad top allow direct scanning in the surgical and prosthetic phases, eliminating the need for scan posts.

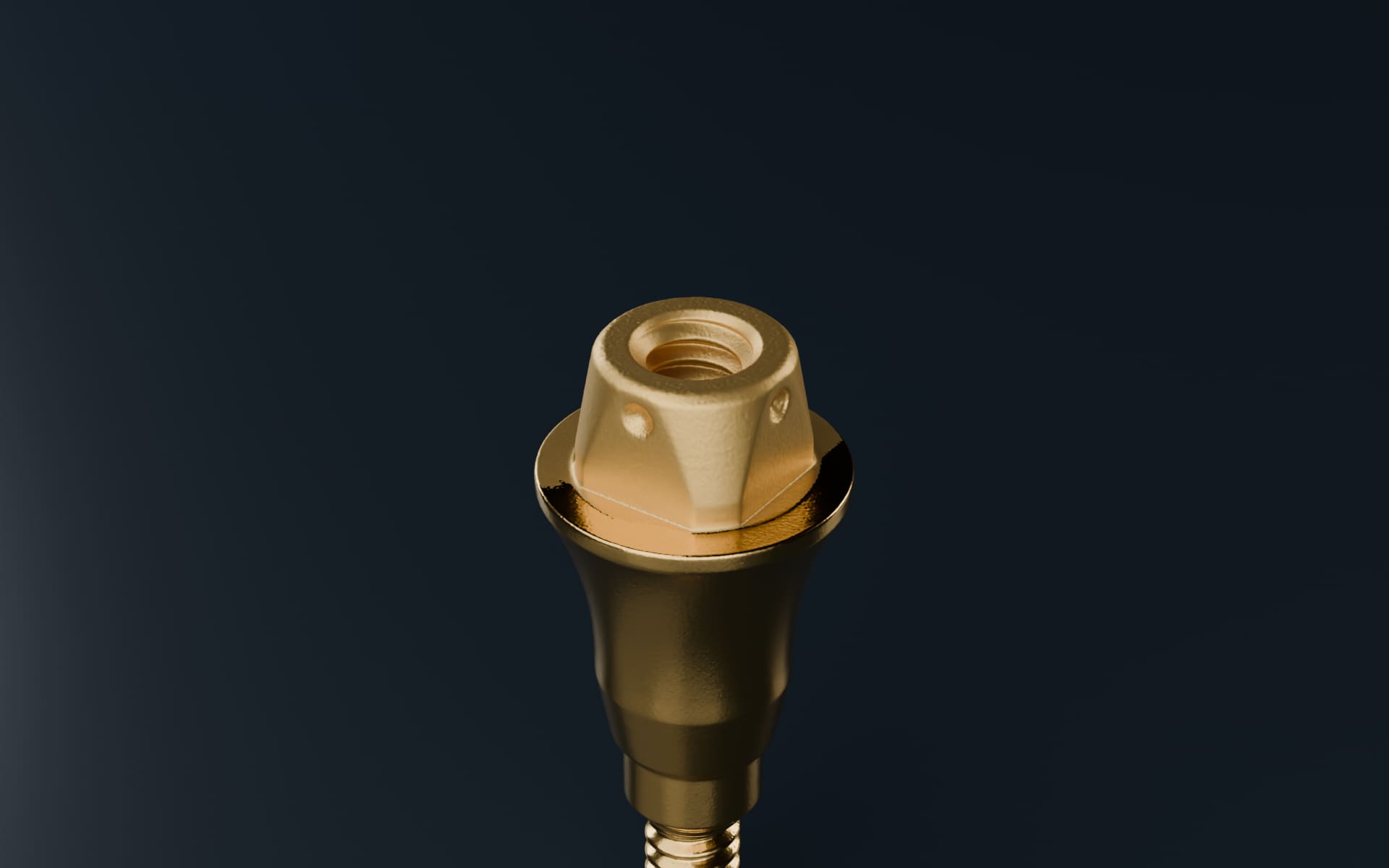

Compared to an external hex implant, the enlarged interface reduces stress on the prosthesis retention screw.

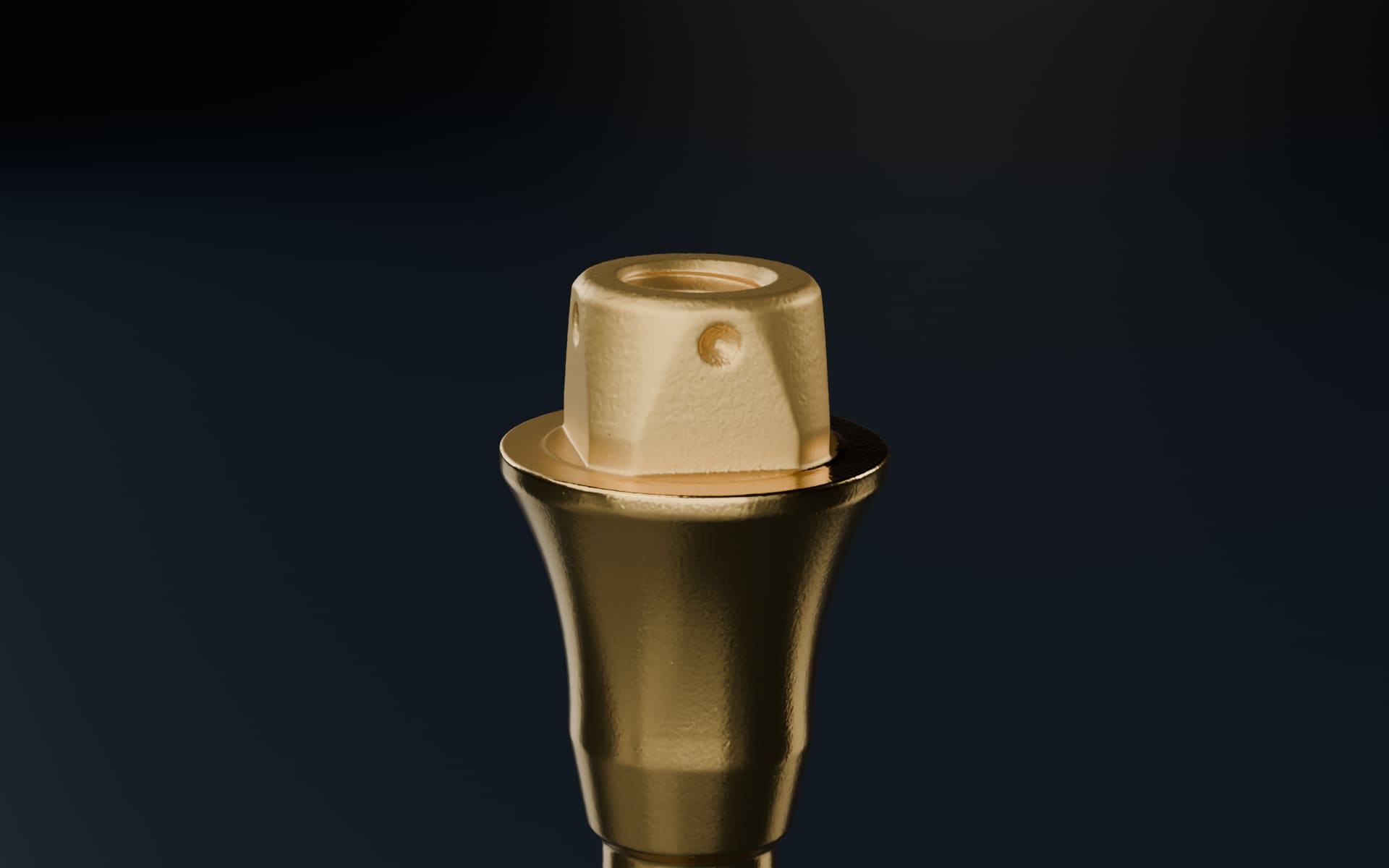

The beveled quad geometry seats the prosthesis with no marginal micro-gap and no mobility.

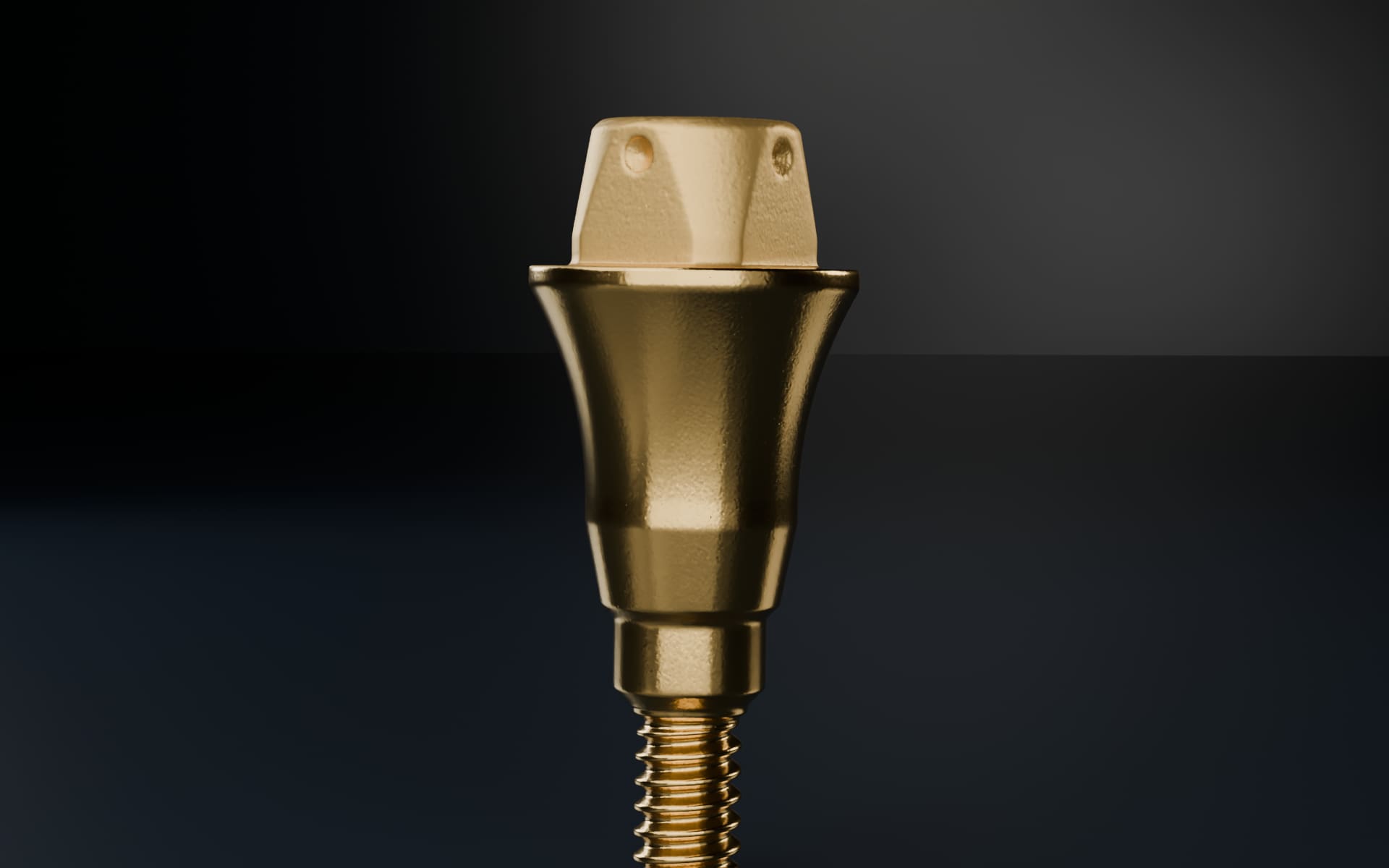

The concave design shoulder provides a favorable response from both soft and hard tissues.

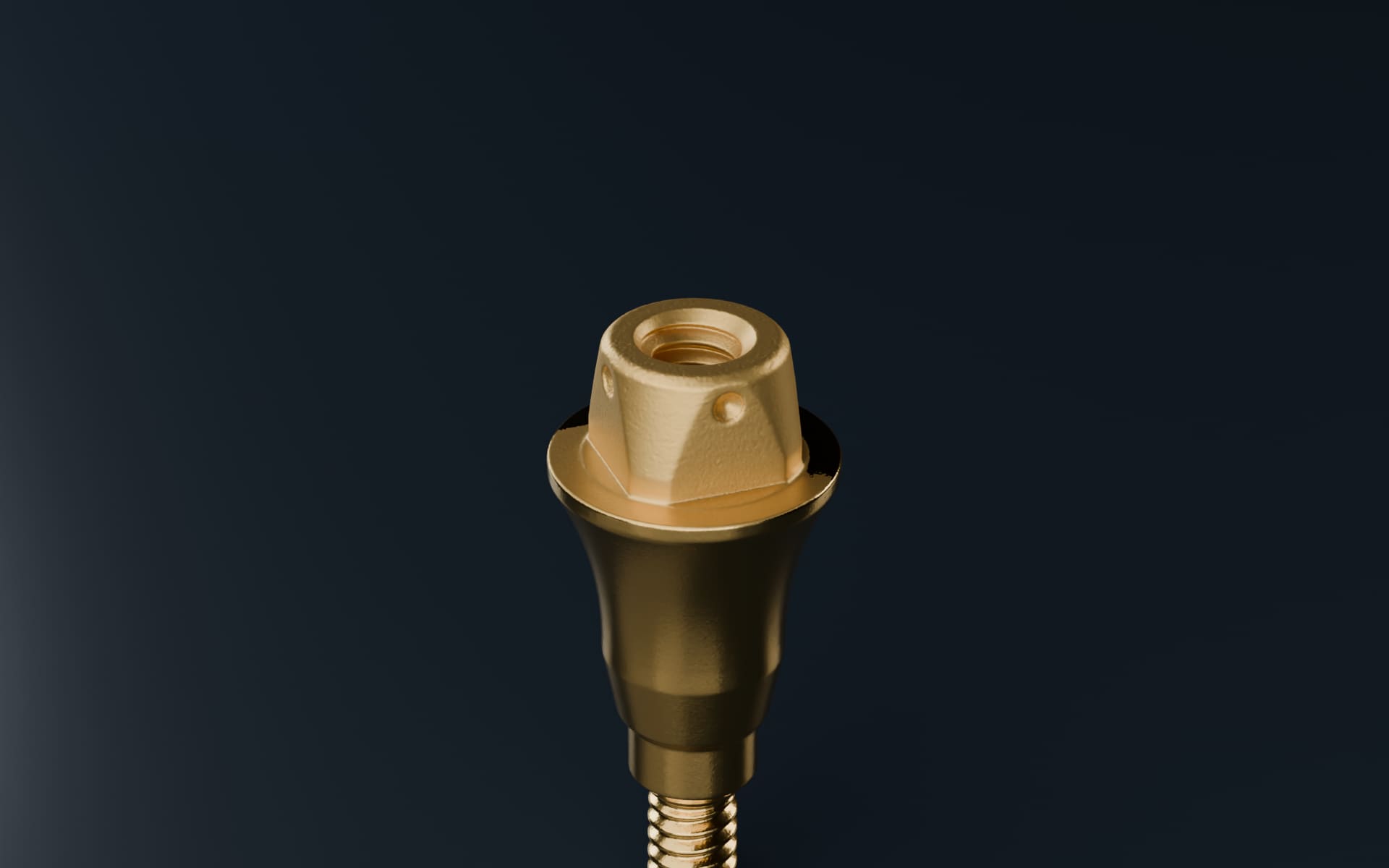

The chimney-free, one-piece design eliminates the risk of bacterial infiltration to the implant platform.
Options of 1.5, 2.5 and 3.5 mm adapt to implant depth and supra-crestal tissue height. A 30° angulated version covers tilted implants, and with the UBH30 screw and short sleeve allows up to 60° of total correction in the applicable configuration.
Prefabricated, single-use healers in biocompatible printed resin, in small, medium and large, centered or offset, for anteriors, premolars and lower and upper molars, plus cylindrical 6 and 7 mm options. Low-cost enough to modify chairside, precise enough to shape tissue for the final prosthesis.
Each one rotates freely on the i-base, so orientation is ideal regardless of the implant connection, without breaking the digital protocol.
Each shape carries a short code: a for anteriors, p for premolars, m1 for lower and m2 for upper molars, followed by S, M or L. A small centered premolar is pS. Item numbers for every healer are in the ordering reference.
Multi-purpose sleeves that carry the prosthesis to the i-base, in two geometries, each in a long and a short version.
Provisional restorations can be made directly on the i-base, without a sleeve, to reduce treatment cost. Final single units go on an AR-sleeve and multiple units on R-sleeves. The short sleeve with the UBH30 screw corrects the screw channel up to 30°.
Two separate M1.6 screws. The standard retention screw, in Ti6Al4V alloy, secures healers and prostheses. The UBH30 screw, 5.1 mm long, corrects the screw channel up to 30° in a full 360° direction when used with the short sleeve. Prostheses are tightened to 30 Ncm.
One analog for all i-base options, compatible with conventional and digital workflows, for stone models and with a positioning design made for accurate seating in 3D-printed models.
For single and multiple unit cases, open and closed tray techniques. A scannable version is available for digital workflows.
Torque values, driver compatibility and item numbers for every component on this page sit on one reference page.
Check tightening torque, compatible screwdrivers and item numbers before ordering or delivery.
